Eliminates High Cost of Cabling with Full-Scale Wireless Mesh Coverage
Aruba Instant On AP17 Outdoor Access Points feature built-in wireless mesh capabilities to cost-effectively extend Wi-Fi connectivity without additional cables.Conveniently expands your network to hard-to-wire areas and nearly eliminating spotty connections and dead zones, providing Wi-Fi where you need it. -
Safeguard Sensitive Data with WPA2/WPA3 and Enhanced Open
Aruba Instant On AP17 Outdoor Access Points come with integrated Wi-Fi Alliance security standard WPA2/WPA3 and Enhanced Open support for protected wireless access.Create up to eight different SSIDs under one network name to keep your data safe, whether surfing the web or checking HR data. -
Simplicity is the Key to a Great Wi-Fi Experience
The Aruba Instant On AP17 Outdoor Access Points are built with premium hardware and software quality that's reliable and comes from a trusted vendor.Effortless set-up right out of the box – in the palm of your hand.The Aruba Instant On portfolio comes with flexible management options to choose from: The Aruba Instant On mobile app guides you through step-by-step from initial set-up to ongoing management.Aruba Instant On AP17 Outdoor Access Points are designed for single or distributed small businesses sites such as tech start-ups, graphic design firms, cafés, restaurants, and other Wi-Fi hotspots.Simple to build landing page lets you customize your guest access page with your logo, your own brand, and acceptance of use language.
Specifications
Summary
- Product Description

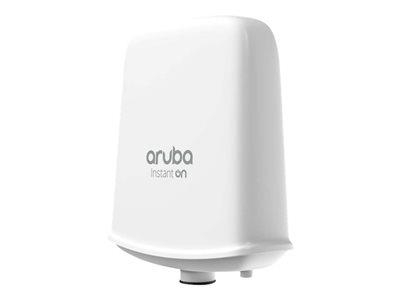

- HPE Networking Instant On AP17 (RW) - radio access point - Bluetooth, Wi-Fi 5
- Device Type
- Radio access point
- Form Factor
- External - outdoor
- Data Link Protocol
- Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- Frequency Band
- 2.4 GHz, 5 GHz
- Performance
- Concurrent data rate (5 GHz): 867 Mbps , Concurrent data rate (2.4 GHz): 300 Mbps
- Included Accessories
- Cable gland M20x1.5, self-tapping screw, grounding lug, M4x8 screw, mounting bracket
- Power Over Ethernet (PoE) Supported
- PoE
- Dimensions (WxDxH)
- 18.7 cm x 15.6 cm x 6.7 cm
- Weight
- 650 g
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- Radio access point
- Ruggedized Design
- Outdoor
- Width
- 18.7 cm
- Depth
- 15.6 cm
- Height
- 6.7 cm
- Weight
- 650 g
Networking
- Form Factor
- External
- Connectivity Technology
- Wireless
- Data Link Protocol
- Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- Frequency Band
- 2.4 GHz, 5 GHz
- Performance
- Concurrent data rate (5 GHz): 867 Mbps , Concurrent data rate (2.4 GHz): 300 Mbps
- Status Indicators
- Status
- Features
- Manageable, wall mountable, reset button, 2T2R MIMO technology, pole mountable, Bluetooth (BLE) clients support
- Encryption Algorithm
- WPA2, WPA3, Opportunistic Wireless Encryption (OWE)
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.11ac
Aerial
- Antenna
- Internal
- Antenna Qty
- 2
- Directivity
- Omni-directional
- Gain Level
- 4.7 dBi
Expansion / Connectivity
- Interfaces
- 1 x 1000Base-T (PoE) - RJ-45
Miscellaneous
- Included Accessories
- Cable gland M20x1.5, self-tapping screw, grounding lug, M4x8 screw, mounting bracket
- MTBF
- 34 years
- Compliant Standards
- IEC 60950, UL 2043, EN 60601-1-2, EN 60601-1-1, CB 62368
Power
- Power Over Ethernet (PoE) Supported
- PoE
Software / System Requirements
- OS Provided
- InstantOS
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years , Technical support - phone consulting - 90 days , Technical support - web support - 2 years
Environmental Parameters
- Min Operating Temperature
- -40 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 5 - 93% (non-condensing)
