APC SMX3000HVNC Smart-UPS X1500VA Rack/Tower LCD230V

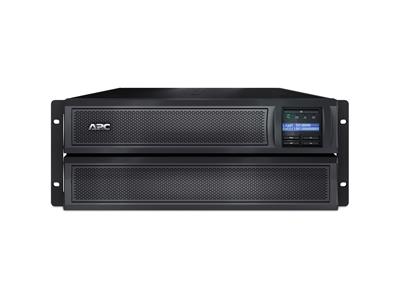

APC SMX3000HVNC Smart-UPS X1500VA Rack/Tower LCD230V

Review this product
Quicklinx: BBXFWS00 Mfr#: SMX3000HVNC
Type: UPS
Power Rating: 2700Watt
Ordered upon request
£1,950.33 ex VAT
£2,340.39 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

Intuitive LCD interface provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

High frequency design reduces or eliminates bulky transformers resulting in lighter units for ease of handling.

APC Smart-UPS X 3000 Rack/Tower LCD recognizes when external battery packs are attached and automatically adjusts runtime.

Patent-pending operating mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

  • Cold-start capable

    Provides temporary battery power when the utility power is out
  • Temperature-compensated battery charging

    Prolongs battery life by regulating the charge voltage according to battery temperature
  • Green mode

    Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection
  • High online efficiency

    Reduces utility costs, generates less heat
  • Intuitive LCD interface

    Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys
  • Predictive replace battery date

    Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning
  • SmartSlot

    Customize UPS capabilities with management cards
  • Energy meter

    Provides actual kilowatt hours of usage for energy conscious users
  • Multiple switched outlet groups

    Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding

Specifications

Summary

Product Description
APC Smart-UPS X 3000 Rack/Tower LCD - UPS - 2700 Watt - 3000 VA - with APC UPS Network Management Card AP9631
Device Type
UPS - rack-mountable / external
Rack Size
4U
Weight
38.64 kg
Input Voltage
AC 230 V
Output Voltage
AC 230 V
Power Capacity
2700 Watt / 3000 VA
Input Connectors
1 x power IEC 60320 C20
Output connectors
8 x power IEC 60320 C13 , 2 x power IEC 60320 C19
Battery
Lead Acid
Batteries Qty
1
Run Time (Up To)
6.3 min at full load
Networking
Ethernet 10/100, RS-232, USB
Remote Management Protocol
SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SSH-2
Colour
Black
Dimensions (WxDxH)
43.2 cm x 48.3 cm x 17.8 cm
Manufacturer Warranty
3-year warranty
Bundled with
APC UPS Network Management Card AP9631
Designed For
P/N: AR2487G, AR3100W, AR3105W, AR3140G, AR3155W, AR3305W, AR3340G, AR3355SP, AR3355W, AR4000MVX429, AR4000MVX432, AR4018IX429, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, NBWL0356A, SMX3000HVTUS


Detailed Specification

General

Device Type
UPS - rack-mountable / external
Height (Rack Units)
4U
Colour
Black
Bundled with
APC UPS Network Management Card AP9631

Power Device

UPS Technology
Line interactive
Input Voltage
AC 230 V
Input Voltage Range
AC 140 - 280 V
Frequency Provided
47 - 63 Hz
Frequency Required
47 - 63 Hz
Input Connectors
1 x power IEC 60320 C20
Power Output Connectors Details
8 x power IEC 60320 C13 , 2 x power IEC 60320 C19
Output Voltage
AC 230 V 47 - 63 Hz
Power Capacity
2700 Watt / 3000 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Energy Rating
645 Joules
Circuit Protection
Circuit breaker
Efficiency
98.5%

Battery

Quantity
1
Technology
Lead Acid
Run Time (Up To)
6.3 min at full load , 15.7 min at half load
Recharge Time
3 hours

Networking

Remote Management Interface
Ethernet 10/100, RS-232, USB
Remote Management Protocol
SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SSH-2

Expansion / Connectivity

Interfaces
1 x USB , 1 x RS-232 , 1 x EPO (emergency power off) , 1 x management (Ethernet) - RJ-45
Expansion Slots
1 (total) / 0 (free) x SmartSlot

Miscellaneous

Cables Included
Serial cable , USB cable , Power cable 1.83 m
Rack Mounting Kit
Included
Features
Audible alarm, LCD display, overload protection
Compliant Standards
CSA, C-Tick, GOST, UL 1449, UL 1778, VDE, IEC 60950, EN 50091-2, IRAM, RoHS, EN 50091-1, FCC Part 15 A, REACH

Software / System Requirements

Software Included
APC PowerChute Business Edition

Manufacturer Warranty

Service & Support
Limited warranty - 3 years , Limited warranty - batteries - 2 years

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95%
Sound Emission
55 dBA

Dimensions & Weight

Width
43.2 cm
Depth
48.3 cm
Height
17.8 cm
Weight
38.64 kg

Dimensions & Weight (Shipping)

Shipping Width
58.6 cm
Shipping Depth
63.3 cm
Shipping Height
33 cm
Shipping Weight
47.73 kg

Compatibility Information

Designed For
P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC2513, ACF001, ACF002, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR203A, AR204A, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3810, AR3812, AR3814, AR4000MV, AR4000MVX429, AR4000MVX432, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR7050, AR7057, AR8135BLK, NBWL0356A, SMX3000HVTUS, SU2000R3X155
