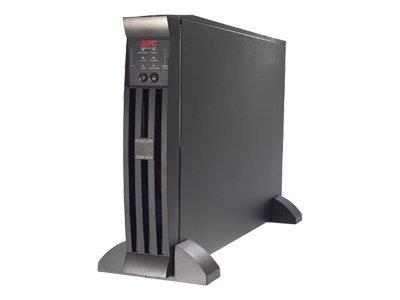

Name: APC Smart-UPS XL Modular 3000VA 230V Rackmount / Tower
Price: 2962.31 GBP
Availability: InStock
Rating: 0.0 (0 reviews)

Description

APC Smart-UPS XL protects your data by supplying reliable, network-grade power with scalable run-time in tower and rack mount form factors. With optional, matching battery packs, run-time can be easily extended and optimized for the application. APC understands long run-time requirements so; Smart-UPS XL's can be configured with up to 10 additional battery packs - for run-times exceeding 24 hours, if necessary. The convergence of voice and data networks is placing higher demands on availability expectations - and the Smart-UPS XL delivers. Voice over Internet Protocol (VoIP), e-commerce, WiFi ("hotspots", WLAN/ WWAN, and mixed wireless), and data enabled PBX's are a few of the applications driving the need for Smart-UPS XL. APC Smart-UPS XL is also the perfect UPS for fileservers (Intel or UNIX based), minicomputers, Network switches and hubs, ATM's, telecommunications systems and other mission-critical applications requiring longer runtime.

With included PowerChute management software for servers and workstations, IT administrators can provide safe system shutdown and advanced UPS management (All major operating systems supported). Connectivity is through a serial or USB port. Additional manageability is available through the SmartSlot, an internal accessory slot that allows you to install optional accessories to enhance the performance of your UPS. Network connection with Web browser management and/or environmental monitoring, serial port expansion, and out-of-band management options are available. With pure sine-wave output ensuring compatibility with all connected devices, Intelligent Battery Management ensuring a highly available UPS and an advanced 16 segment bar graph display ensuring information and management, the Smart-UPS XL is a UPS you can count on.

Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault
Modular design
Increases adaptability with an open architecture configurable to any IT environment
USB connectivity
Provides management of the UPS via a USB port (not available on all models)
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment

Specifications

Summary

Product Description: APC Smart-UPS XL Modular 3000VA - UPS - 2.85 kW - 3000 VA

Device Type: UPS - external

Rack Size: 2U

Weight: 47 kg

Input Voltage: AC 230 V

Output Voltage: AC 230 V

Power Capacity: 2.85 kW / 3000 VA

Input Connectors: 1 x power IEC 60320 C20

Output connectors: 7 x power IEC 60320 C13 , 1 x power IEC 60320 C19

Battery Form Factor: Plug-in module

Run Time (Up To): 3.5 min at full load

Colour: Black

Dimensions (WxDxH): 43 cm x 68 cm x 9 cm

Manufacturer Warranty: 2-year warranty

Designed For: P/N: AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR3140G, AR3155W, AR3305W, AR3340G, AR3355W, AR3357X674, AR4018IX429, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, NBWL0356A

Detailed Specification

General

Device Type: UPS - external

Battery Enclosure Type: Plug-in module

Height (Rack Units): 2U

Colour: Black

Power Device

UPS Technology: Line interactive

Input Voltage: AC 230 V

Input Voltage Range: AC 160 - 285 V

Input Voltage Range (Adjustable): AC 151 - 302 V

Frequency Provided: 50/60 Hz

Input Voltage Margin: ± 5%

Frequency Required: 50/60 Hz

Input Connectors: 1 x power IEC 60320 C20

Power Output Connectors Details: 7 x power IEC 60320 C13 , 1 x power IEC 60320 C19

Output Voltage: AC 230 V 50/60 Hz

Power Capacity: 2.85 kW / 3000 VA

Output Waveform: Sinewave

Surge Suppression: Yes

Surge Energy Rating: 490 Joules

Battery

Run Time (Up To): 3.5 min at full load

Expansion / Connectivity

Interfaces: 1 x RS-232 - 9 pin D-Sub (DB-9) , 1 x USB , 1 x LAN - RJ-45

Expansion Slots: 1 (total) / 0 (free) x SmartSlot

Miscellaneous

Cables Included: Serial cable , USB cable , Power cable 3 m

Rack Mounting Kit: Included

Features: Audible alarm

Compliant Standards: C-Tick, GOST, EN 61000-3-2, UL 1449, EN55022 Class A

Software / System Requirements

Software Included: Drivers & Utilities

Manufacturer Warranty

Service & Support: Limited warranty - parts and labour - 2 years

Environmental Parameters

Min Operating Temperature: 0 °C

Max Operating Temperature: 40 °C

Humidity Range Operating: 0 - 95%

Dimensions & Weight

Width: 43 cm

Depth: 68 cm

Height: 9 cm

Weight: 47 kg

Compatibility Information

Designed For: P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3003, AR3003SP, AR3006, AR3006SP, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3103, AR3103SP, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3106, AR3106SP, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR7050, AR7057, AR8135BLK, NBWL0356A
