Description
AT-2711FX 1x PCI-Express design gives you the maxim possible bandwidth and bus efficiency, Hot Swappable capability and Low Power Consumption.
The priority queuing and virtual LAN features offered by AT-2711FX can help users set up the network based on their own needs. The comprehensive diagnostics and configuration software suite provides system administrators and engineers with a profound tool to analyze the network adapter and check specific data.
AT-2711FX Fast Ethernet Fiber Adapter comes with a variety of reliability features. They aim at maintaining a connection as long as possible. This is reached by link aggregation, heterogeneous mixed-speed failover and hot swap.
Specifications
Summary
- Product Description

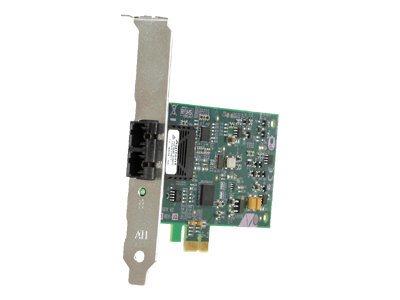

- Allied Telesis AT-2711FX/ST - network adapter - PCIe - 10/100 Ethernet - TAA Compliant
- Device Type
- Network adapter
- Form Factor
- Plug-in card
- Interface (Bus) Type
- PCI Express x1
- Ports
- 10/100 Ethernet
- Dimensions (WxDxH)
- 12.1 cm x 6.9 cm
- Weight
- 50 g
- Cabling Type
- Ethernet 100Base-FX
- Data Link Protocol
- 100Mb LAN
- Max Transfer Distance
- 2 km
- Data Transfer Rate
- 100 Mbps
- Processor
- 1 x Broadcom BCM5752
- RAM
- 72 KB
- Compliant Standards
- IEEE 802.2, IEEE 802.3u, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ac
- System Requirements
- Novell NetWare 6.x, Linux 2.4, Microsoft Windows Server 2003, Linux 2.6, Microsoft Windows 2000/XP/Vista/7, Microsoft Windows Server 2008
- Microsoft Certification
- Compatible with Windows 7
- TAA Compliant
- Yes
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Network adapter
- Form Factor
- Plug-in card
- Interface (Bus) Type
- PCI Express x1
Networking
- Ports
- 10/100 Ethernet
- Connectivity Technology
- Wired
- Cabling Type
- Ethernet 100Base-FX
- Data Link Protocol
- Fast Ethernet
- Data Transfer Rate
- 100 Mbps
- Max Transfer Distance
- 2 km
- Remote Management Protocol
- SNMP
- Status Indicators
- Link OK, link/activity
- Features
- Flow control, ACPI support, WOL, IPv6 support, half duplex mode, full duplex mode, QoS, PXE support
- Compliant Standards
- IEEE 802.2, IEEE 802.3u, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ac
Processor / Memory
- Processor
- 1 x Broadcom BCM5752
- RAM
- 72 KB
Expansion / Connectivity
- Interfaces
- 1 x 100Base-FX - ST multi-mode - x 2
- Compatible Slots
- 1 x PCI Express x1
Miscellaneous
- Included Accessories
- Low-profile bracket, full-height bracket
- Compatible with Windows 7
- "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
- Compliant Standards
- FCC Class B certified, UL, TUV, VCCI, C-Tick, EN55024, EN55022 Class B, RoHS
- TAA Compliant
- Yes
Software / System Requirements
- OS Required
- Novell NetWare 6.x, Linux 2.4, Microsoft Windows Server 2003, Linux 2.6, Microsoft Windows 2000/XP/Vista/7, Microsoft Windows Server 2008
Dimensions & Weight
- Depth
- 12.1 cm
- Height
- 6.9 cm
- Weight
- 50 g
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 5 - 90% (non-condensing)
