Description
Based on the Haswell microarchitecture, Xeon processor families bring a set of performance boosting features. In addition to the usual boost in frequencies and core numbers, the Intel Xeon E5-1600/2600 V3 families are the first in the industry to support the brand DDR4 memory technology. Moreover, these processors include encryption performance overhead reduction features, and technologies improving run time and migration VM integrity.
The Intel Xeon V3 families support the DDR4 technology, which brings much better bandwidth performance and less power consumption.
-
Intel Xeon V3 processor families
Based on the Haswell microarchitecture, these Intel processor families bring a set of performance boosting features. In addition to the usual boost in frequencies and core numbers, the Intel Xeon V3 families are the first in the industry to support the brand DDR4 memory technology. Moreover, these processors include encryption performance overhead reduction features, and technologies improving run time and migration VM integrity. -
DDR4 support - next gen memory
The Intel Xeon V3 families support the DDR4 technology, which brings much better bandwidth performance and less power consumption. -
Memory frequency - get the performance edge
On the previous server platforms from Intel, the maximum supported memory frequency has always been automatically downgraded by design when more DIMMs were being added on a Server motherboard. As this trade-off between performance and capacity represents a dilemma to many memory-hungry server applications, Gigabyte offers a unique solution. All Gigabyte motherboards based on the LGA 2011-3 socket support by default a maximum frequency of 2133 MHz in any memory configuration. -
Dedicated LAN card slot - network flexibility
This motherboard uses a mezzanine card slot with four PCI-Express lanes with custom mounting sockets to receive one of the proprietary LAN Controller cards. Positioned right between the board's socket and I/O, it can add more LAN ports to the Standard interface and fit into a larger range of possible network scenarios. -
MSATA6QB/S onboard storage
Thanks to the Mini-PCle slot shown on the right, users have the flexibility to install an SSD directly on the motherboard, which can enhance a server's performance with better overall responsiveness, faster boot times and faster System resume times.
Specifications
Summary
- Product Description

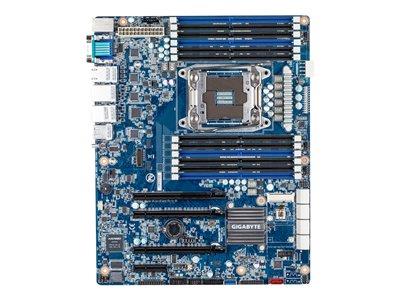

- Gigabyte MU70-SU0 - 1.0 - motherboard - ATX - LGA2011-v3 Socket - C612
- Product Type
- Motherboard - ATX
- Chipset Type
- Intel C612
- Processor Socket
- 1 x LGA2011-v3 Socket
- Compatible Processors
- Xeon E5-2600 v3 series, Xeon E5-1600 v3 series
- Max RAM Size
- 1.5 TB
- RAM Supported
- 12 DIMM slots - DDR4, ECC, registered, Load-Reduced
- Storage Ports
- 10 x SATA-600 (RAID)
- USB / FireWire Ports
- 5 x USB 3.0 + 2 x USB 2.0 + (2 x USB 3.0 + 2 x USB 2.0 via headers)
- Graphics
- ASPEED AST2400
- LAN
- 4 x Gigabit Ethernet
Detailed Specification
General
- Product Type
- Motherboard - ATX
- Chipset Type
- Intel C612
- Processor Socket
- LGA2011-v3 Socket
- Max Processors Qty
- 1
- Compatible Processors
- Xeon E5-2600 v3 series, Xeon E5-1600 v3 series
Supported RAM
- Max Size
- 1.5 TB
- Technology
- DDR4
- Bus Clock
- 1600 MHz, 1866 MHz, 2133 MHz
- Supported RAM Integrity Check
- ECC
- Registered or Buffered
- Registered, Load-Reduced
- Features
- Single rank, dual rank, quad channel memory architecture, quad rank
- Details
- 768 GB - registered , 1.5 TB - Load-Reduced
Graphics
- Graphics Controller
- ASPEED AST2400
LAN
- Network Controller
- Intel I210
- Network Interfaces
- 4 x Gigabit Ethernet
Expansion / Connectivity
- Expansion Slots
- 12 x DIMM 288-pin (1.2 V) , 2 x PCIe 3.0 x16 , 1 x CPU , 1 x PCIe 3.0 x16 (x8 mode) , 1 x PCIe 2.0 x4 (x2 mode) , 1 x PCIe x4
- Storage Interfaces
- SATA-600 -connectors: 9 x 7pin SATA, 1 x mSATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
- Interfaces
- 4 x USB 3.0 , 2 x USB 2.0 , 1 x VGA , 4 x LAN (Gigabit Ethernet) , 1 x management , 1 x serial , 1 x PS/2 keyboard / mouse
- Internal Interfaces
- 2 x USB 3.0 - header , 2 x USB 2.0 - header , 1 x USB 3.0 - Type A
- Power Connectors
- 24-pin main power connector, 8-pin ATX12V connector
Features
- BIOS Features
- IPMI 2.0 support
- Hardware Monitoring
- CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage
- Hardware Features
- All IR digital power design, narrow ILM
Miscellaneous
- Included Accessories
- I/O back cover
- Cables Included
- 2 x Serial ATA cable
- Width
- 30.5 cm
- Depth
- 25.4 cm
