Description
Gigabyte Ultra Durable 4 Plus debuts on Gigabyte 8 Series motherboard, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.
Gigabyte motherboard features Gigabyte DualBIOS, an exclusive technology from Gigabyte that protects arguably one of your PC's most crucial components, the BIOS. Gigabyte DualBIOS means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.
-
Gigabyte Ultra Durable 4 Plus
Gigabyte Ultra Durable 4 Plus debuts on Gigabyte 8 Series motherboard, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan. -
Ultra performance
Gigabyte uses all solid caps (capacitors) and low RDS (on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan. -
Gigabyte UEFI DualBIOS
Gigabyte motherboard features Gigabyte DualBIOS, an exclusive technology from Gigabyte that protects arguably one of your PC's most crucial components, the BIOS. Gigabyte DualBIOS means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process. -
DVI support
DVI (Digital Visual Interface) is a video interface standard designed for carrying uncompressed digital video data and to maximize the visual quality of digital display devices, such as LCD monitors, digital projectors, and so on. In addition, the DVI interface is compatible with HDCP (High-bandwidth Digital Content Protection). -
On/Off Charge technology
Gigabyte On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of Gigabyte's highly acclaimed 3x USB power feature, On/Off Charge enables devices to draw more current from Gigabyte motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger. -
LAN optimizer - intelligent optimization network management tool
Gigabyte LAN optimizer is designed to allow the user to manage different types of network traffic so that data streams such as HD media, web browsing or online gaming can be prioritized, taking precedence over large data downloads that tend to strangle overall network bandwidth.
Specifications
Summary
- Product Description

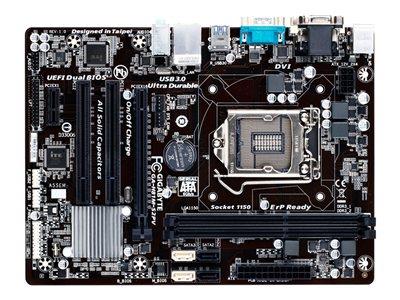

- Gigabyte GA-H81M-S2PV - 1.0 - motherboard - micro ATX - LGA1150 Socket - H81
- Product Type
- Motherboard - micro ATX
- Chipset Type
- Intel H81
- Processor Socket
- 1 x LGA1150 Socket
- Compatible Processors
- Pentium, Celeron, Core i5, Core i3, Core i7
- Max RAM Size
- 16 GB
- RAM Supported
- 2 DIMM slots - DDR3, non-ECC
- Storage Ports
- 2 x SATA-600, 2 x SATA-300
- USB / FireWire Ports
- 2 x USB 3.0 + 2 x USB 2.0 + (4 x USB 2.0 via headers)
- Max Allocated RAM Size
- 1 GB
- Audio
- HD Audio (8-channel)
- LAN
- Gigabit Ethernet
- Microsoft Certification
- Compatible with Windows 7
Detailed Specification
General
- Product Type
- Motherboard - micro ATX
- Chipset Type
- Intel H81
- Processor Socket
- LGA1150 Socket
- Max Processors Qty
- 1
- Compatible Processors
- Pentium, Celeron, Core i5, Core i3, Core i7
Supported RAM
- Max Size
- 16 GB
- Technology
- DDR3
- Bus Clock
- 1600 MHz, 1333 MHz
- Supported RAM Integrity Check
- Non-ECC
- Features
- Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Graphics
- Max Allocated RAM Size
- 1 GB
Audio
- Type
- HD Audio (8-channel)
- Audio Codec
- Realtek ALC887
- Compliant Standards
- High Definition Audio
LAN
- Network Interfaces
- Gigabit Ethernet
Expansion / Connectivity
- Expansion Slots
- 2 x DIMM 240-pin (1.5 V) , 1 x PCIe 2.0 x1 , 1 x PCIe 2.0 x16 , 2 x PCI
- Storage Interfaces
- SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices , SATA-300 -connectors: 2 x 7pin Serial ATA - 2 devices
- Interfaces
- 1 x DVI-D , 1 x VGA , 1 x LAN (Gigabit Ethernet) , 2 x USB 2.0 , 2 x USB 3.0 , 1 x PS/2 keyboard , 1 x audio line-in - mini-jack , 1 x audio line-out - mini-jack , 1 x microphone - mini-jack , 1 x PS/2 mouse , 1 x serial
- Internal Interfaces
- 4 x USB 2.0 - header , 1 x audio - header , 1 x parallel - header
- Power Connectors
- 24-pin main power connector, 8-pin ATX12V connector
Features
- BIOS Type
- AMI
- BIOS Features
- DMI 2.0 support, ACPI 2.0a support, SMBIOS 2.6 support, UEFI BIOS
- Hardware Monitoring
- CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage
- Hardware Features
- DualBIOS, Q-Flash, All-Solid Capacitor motherboard Design, On/Off Charge, GIGABYTE LAN Optimizer, ESD Protection, Ultra Durable 4 Plus
Miscellaneous
- Software Included
- Norton Internet Security, @BIOS, EasyTune, GIGABYTE EZ Setup, Xpress Install, GIGABYTE USB Blocker, GIGABYTE App Center
- Compatible with Windows 7
- "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
- Compliant Standards
- Plug and Play, ACPI 2.0a
- Width
- 24.4 cm
- Depth
- 18 cm
