Description

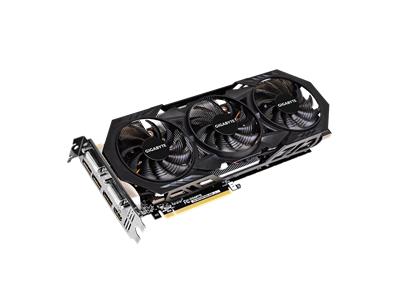

Gigabyte GV-N970WF3OC-4GD features Flex display technology that can automatically detect any connected monitors and achieve multi-display gaming by using various output groups. Users could enjoy amazing gaming experience in ultra HD resolution with extended flexibility in arranging monitor configurations and making future system upgrade extremely easy. WINDFORCE 3X cooling system is equipped with high performance pure cooper heat-pipes which direct touch the GPU can strengthen the speed of heat dissipation. Besides, the air flow is effectively enhanced by the unique blade fan design, this not only increase the cooling capacity while reducing air turbulence but also results a lower noise level. Ultra Durable VGA board provides dramatic cooling effect on lowering both GPU and memory temperature by doubling the copper inner layer of PCB. It also reduces voltage ripples in normal and transient state, thus effectively lowers noises and ensures higher overclocking capability, allows more bandwidth for electron passage and reduces circuit impedance. The less circuit impedance, the more stable flow of current and can effectively improve power efficiency.
-
Flex display technology
GIGABYTE Flex display technology can automatically detect any connected monitors and achieve multi-display gaming by using various output groups. Users could enjoy amazing gaming experience in ultra HD resolution with extended flexibility in arranging monitor configurations and making future system upgrade extremely easy. -
WINDFORCE 3X cooling system
WINDFORCE 3X cooling system is equipped with high performance pure cooper heat-pipes which direct touch the GPU can strengthen the speed of heat dissipation. Besides, the air flow is effectively enhanced by the unique blade fan design, this not only increase the cooling capacity while reducing air turbulence but also results a lower noise level. -
Ultra Durable VGA
Ultra Durable VGA board provides dramatic cooling effect on lowering both GPU and memory temperature by doubling the copper inner layer of PCB. It also reduces voltage ripples in normal and transient state, thus effectively lowers noises and ensures higher overclocking capability, allows more bandwidth for electron passage and reduces circuit impedance. The less circuit impedance, the more stable flow of current and can effectively improve power efficiency.
Specifications
Summary
- Product Description
- Gigabyte GV-N970WF3OC-4GD (rev. 1.0/1.1) - graphics card - GF GTX 970 - 4 GB
- Device Type
- Graphics card
- Bus Type
- PCI Express 3.0 x16
- Graphics Engine
- NVIDIA GeForce GTX 970
- Memory
- 4 GB GDDR5
- Core Clock
- 1114 MHz
- Boost Clock
- 1253 MHz
- Effective Memory Clock
- 7 GHz
- Memory Interface
- 256-bit
- Max Resolution
- 4096 x 2160
- Max Monitors Supported
- 4
- Interfaces Details
- DVI-I (dual link) , DVI-D (dual link) , HDMI , 3 x DisplayPort
- API Supported
- OpenGL 4.4, DirectX 12
- Dimensions (WxDxH)
- 4.3 cm x 31 cm x 12.9 cm
Detailed Specification
General
- Device Type
- Graphics card
- Bus Type
- PCI Express 3.0 x16
- Graphics Engine
- NVIDIA GeForce GTX 970
- Core Clock
- 1114 MHz
- Boost Clock
- 1253 MHz
- Process Technology
- 28 nm
- Max Resolution
- 4096 x 2160
- Max Monitors Supported
- 4
- Interfaces Details
- DVI-I (dual link) , DVI-D (dual link) , HDMI , 3 x DisplayPort
- API Supported
- OpenGL 4.4, DirectX 12
- Features
- Ultra Durable VGA, Nvidia PhysX-Ready, Nvidia 3D Vision technology, GIGABYTE WindForce 3x, Nvidia SLI ready, NVIDIA Adaptive Vertical Sync, NVIDIA GPU Boost, GIGABYTE Flex Display Technology
Memory
- Size
- 4 GB
- Technology
- GDDR5 SDRAM
- Effective Clock Speed
- 7 GHz
- Bus Width
- 256-bit
System Requirements
- Required Power Supply
- 550 W
- Additional Requirements
- 6 pin PCI Express power connector, 8 pin PCI Express power connector
Miscellaneous
- Width
- 4.3 cm
- Depth
- 31 cm
- Height
- 12.9 cm
