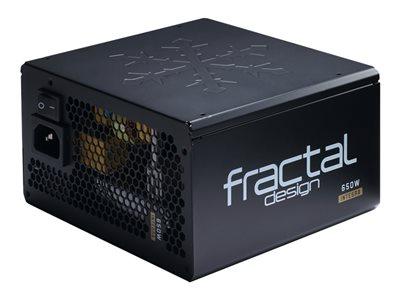

Fractal Design Intergra M (650W) Internal Power Supply Unit

Fractal Design Intergra M (650W) Internal Power Supply Unit

Review this product
Quicklinx: B34CWS00 Mfr#: FD-PSU-IN3B-650W-UK
1 on order, delivery delayed

Description

Fractal Design Integra M Series power supply units feature excellent electrical performance, including 80PLUS Bronze certified efficiency. The modular flat cable system allows for a clean installation, and enhances airflow patterns inside the case. The short length makes for easy installation in small computer cases, and the extra-long cable accommodates modern, bottom-PSU cases. Fractal Design Integra M units are equipped with a large temperature-controlled fan for reduced noise levels and optimum cooling. The Integra M is a great choice for medium-performance gaming computers and workstations.

Specifications

Summary

Product Description
Fractal Design Integra M - power supply - 650 Watt
Device Type
Power supply - internal
Specification Compliance
ATX12V 2.4/ EPS12V 2.92
80 PLUS Certification
80 PLUS Bronze
Weight
1.63 kg
Localisation
United Kingdom
Input Voltage
AC 100-240 V
Output Voltage
+3.3, +5, ±12 V
Power Capacity
650 Watt
Output Current
+3.3V - 20 A , +5V - 20 A , +12V1 - 54 A , -12V - 0.5 A , +5VSB - 2.5 A
Output connectors
1 x power 24 pin ATX with detachable 4 pin section , 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section , 1 x 8 pin PCI Express power with detachable 2 pin section , 1 x 15 pin Serial ATA power , 1 x 4 PIN internal power
Modular Cable Management
Yes
Cooling System
120 mm fan
Included Accessories
Cable ties, thumbscrews
Colour
Black
Dimensions (WxDxH)
15 cm x 14 cm x 8.6 cm
Manufacturer Warranty
3-year warranty


Detailed Specification

General

Device Type
Power supply - internal
Specification Compliance
ATX12V 2.4/ EPS12V 2.92
PSU Form Factor
ATX
Colour
Black
Localisation
United Kingdom

Power Device

Input Voltage
AC 100-240 V
Frequency Required
50/60 Hz
Power Output Connectors Details
1 x power 24 pin ATX with detachable 4 pin section , 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section , 1 x 8 pin PCI Express power with detachable 2 pin section , 1 x 15 pin Serial ATA power , 1 x 4 PIN internal power
Output Voltage
+3.3, +5, ±12 V
Power Capacity
650 Watt
Output Current
+3.3V - 20 A , +5V - 20 A , +12V1 - 54 A , -12V - 0.5 A , +5VSB - 2.5 A
Modular Cable Management
Yes
80 PLUS Certification
80 PLUS Bronze

Miscellaneous

Included Accessories
Cable ties, thumbscrews
Cables Included
Power cable
MTBF
100,000 hours
Cooling System
120 mm fan
Features
Over voltage protection, overpower protection, undervoltage protection, short-circuit protection, temperature controlled fan, Intel 4th-gen CPU (Haswell) compatible
Compliant Standards
TUV, PCT, FCC, RoHS, WEEE, cULus, ErP 2013

Manufacturer Warranty

Service & Support
Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
40 °C

Dimensions & Weight

Width
15 cm
Depth
14 cm
Height
8.6 cm
Weight
1.63 kg

Dimensions & Weight (Shipping)

Shipping Width
28.5 cm
Shipping Depth
20.2 cm
Shipping Height
11.5 cm
Shipping Weight
1.85 kg
