Description

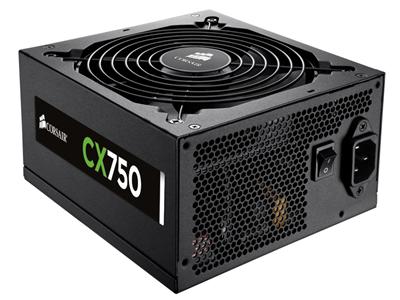

The CX750 is 80 PLUS Bronze certified for excellent efficiency, and like all the CX series PSUs, is an ideal solution for those who want a no-compatibility. With a temperature controlled fan for low noise levels, long cables with tons of connectors for flexibility, and fully sleeved cables, the CX750 is a great choice at a great price.
Specifications
Summary
- Product Description
- CORSAIR CX750 - power supply - 750 Watt
- Device Type
- Power supply - active Power Factor Correction (PFC) - internal
- Specification Compliance
- ATX12V 2.31/ EPS12V 2.91
- 80 PLUS Certification
- 80 PLUS Bronze
- Weight
- 3.27 kg
- Localisation
- United Kingdom
- Input Voltage
- AC 90-264 V
- Output Voltage
- +3.3, +5, ±12 V
- Power Capacity
- 750 Watt
- Output Current
- +3.3V - 25 A , +5V - 25 A , +12V - 62 A , -12V - 0.8 A , +5VSB - 3 A
- Output connectors
- 1 x power 24 pin ATX with detachable 4 pin section , 1 x power 8 pin EPS12V , 4 x 8 pin PCI Express power with detachable 2 pin section , 1 x 4 PIN internal power , 8 x 15 pin Serial ATA power , 1 x 4 PIN mini-power connector
- Dimensions (WxDxH)
- 15 cm x 16 cm x 8.6 cm
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- Power supply - active Power Factor Correction (PFC) - internal
- Specification Compliance
- ATX12V 2.31/ EPS12V 2.91
- PSU Form Factor
- ATX
- Localisation
- United Kingdom
Power Device
- Input Voltage
- AC 90-264 V
- Frequency Required
- 47 - 63 Hz
- Power Output Connectors Details
- 1 x power 24 pin ATX with detachable 4 pin section , 1 x power 8 pin EPS12V , 4 x 8 pin PCI Express power with detachable 2 pin section , 1 x 4 PIN internal power , 8 x 15 pin Serial ATA power , 1 x 4 PIN mini-power connector
- Output Voltage
- +3.3, +5, ±12 V
- Power Capacity
- 750 Watt
- Output Current
- +3.3V - 25 A , +5V - 25 A , +12V - 62 A , -12V - 0.8 A , +5VSB - 3 A
- 80 PLUS Certification
- 80 PLUS Bronze
Miscellaneous
- MTBF
- 100,000 hours
- Features
- Sleeved cables, over current protection, over voltage protection, undervoltage protection, short-circuit protection, single 12V rail, non-modular
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Dimensions & Weight
- Width
- 15 cm
- Depth
- 16 cm
- Height
- 8.6 cm
- Weight
- 3.27 kg
Dimensions & Weight (Shipping)
- Shipping Width
- 29 cm
- Shipping Depth
- 21.6 cm
- Shipping Height
- 13 cm
- Shipping Weight
- 3.53 kg
