Description
Corsair CS MODULAR Series power supplies are an excellent choice for mid-range system builds and most desktop PC computer upgrades. CS-M PSUs are semi-modular and feature 80 PLUS Gold rated efficiency that saves you money on your power bill while generating less heat than many other power supplies. The modular flat black cables allow users fast, neat builds. DC to DC technology ensures 100% compatibility with 4th Generation Intel Core processors.
- The Perfect Choice For Your PC - CS MODULAR Series power supplies are a perfect choice for either new builds or PC desktop upgrades with high-efficiency and low noise.
- 80 PLUS Gold-certified Efficiency - Highly efficient CS MODULAR Series power supplies produce less heat and have lower operating costs.
- Flat black, Low-Profile Modular Cables - You can remove unneeded cables and leave them in the box for fast, easy, and great-looking builds.
- Reliable, Continuous Power Delivery - CS MODULAR Series power ratings are continuous, not peak, for superior protection for your valuable PC.
- Corsair uses high-quality internal components, and CS MODULAR Series power supplies are guaranteed to deliver clean, stable, continuous power.
-
80 PLUS Gold-certified efficiency
The super-efficient operation of the CS series modular results in lower energy use and lower operating costs. Since it generates less heat, the fan doesn't need to work as hard, and you'll enjoy near silent operation. -
Modular cabling with clearly marked connectors
The flat, sleeved black cables are modular, so you'll only use the cables you need and you'll get great-looking results. The clearly-marked connectors make installation fast and straightforward. -
Supports Intel Core processor
The low-power sleep state of the latest Intel processors can cause performance and compatibility issues with some power supplies. CS series modular power supplies fully support the modes, making them an excellent choice for PCs.
Specifications
Summary
- Product Description

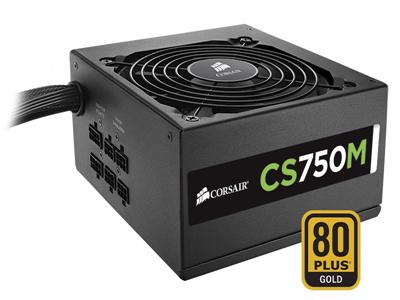

- CORSAIR CS Series CS750M - power supply - 750 Watt
- Device Type
- Power supply - active Power Factor Correction (PFC) - internal
- Specification Compliance
- ATX12V 2.4/ EPS12V 2.92
- 80 PLUS Certification
- 80 PLUS Gold
- Weight
- 2.341 kg
- Localisation
- United Kingdom
- Input Voltage
- AC 100-240 V
- Output Voltage
- +3.3, +5, ±12 V
- Power Capacity
- 750 Watt
- Output Current
- +3.3V - 25 A , +5V - 25 A , +12V - 62 A , -12V - 0.8 A , +5VSB - 3 A
- Output connectors
- 1 x power 24 pin ATX with detachable 4 pin section , 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section , 7 x 4 PIN internal power , 8 x 15 pin Serial ATA power , 2 x 4 PIN mini-power connector , 4 x 8 pin PCI Express power with detachable 2 pin section
- Modular Cable Management
- Yes
- Dimensions (WxDxH)
- 15 cm x 14 cm x 8.6 cm
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- Power supply - active Power Factor Correction (PFC) - internal
- Specification Compliance
- ATX12V 2.4/ EPS12V 2.92
- PSU Form Factor
- ATX
- Localisation
- United Kingdom
Power Device
- Input Voltage
- AC 100-240 V
- Frequency Required
- 47 - 63 Hz
- Power Output Connectors Details
- 1 x power 24 pin ATX with detachable 4 pin section , 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section , 7 x 4 PIN internal power , 8 x 15 pin Serial ATA power , 2 x 4 PIN mini-power connector , 4 x 8 pin PCI Express power with detachable 2 pin section
- Output Voltage
- +3.3, +5, ±12 V
- Power Capacity
- 750 Watt
- Output Current
- +3.3V - 25 A , +5V - 25 A , +12V - 62 A , -12V - 0.8 A , +5VSB - 3 A
- Efficiency
- 92%
- Modular Cable Management
- Yes
- 80 PLUS Certification
- 80 PLUS Gold
Miscellaneous
- MTBF
- 150,000 hours
- Features
- Sleeved cables, over voltage protection, overpower protection, temperature auto control, undervoltage protection, short-circuit protection, Multi-GPU Technologies Supported, semi-modular
- Compliant Standards
- UL, TUV, BSMI, cUL, CB, CCC, FCC, RoHS, WEEE, ICES, KC, EAC, RCM
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Dimensions & Weight
- Width
- 15 cm
- Depth
- 14 cm
- Height
- 8.6 cm
- Weight
- 2.341 kg
Dimensions & Weight (Shipping)
- Shipping Width
- 13.5 cm
- Shipping Depth
- 29.3 cm
- Shipping Height
- 21.3 cm
- Shipping Weight
- 2.721 kg
