Description

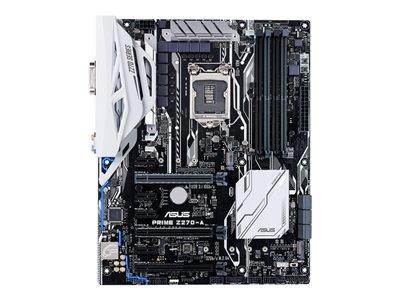

ASUS PRIME Z270-A LGA1151 DDR4 DP HDMI DVI M.2 USB 3.1 Z270 ATX Motherboard
- 5-Way Optimization with Auto-Tuning and FanXpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling
- Maximize your connectivity and speed with integrated Dual M.2, Intel® Optane™ Memory compatibility, USB 3.1 Type A / Type C connections, and Intel® Thunderbolt 3 support
- Dual Patent-pending SafeSlots featuring an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs
- AURA Sync RGB lighting features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of AURA Sync enabled products
- On-board 3D-printing mounts for creating unique designs on your customized build
-
One-click overclock and cooling
One click takes care of all that complex tuning. ASUS 5-way optimization makes your PC smart. It dynamically optimizes essential aspects of your system based on real-time usage - so you get superb CPU performance, everyday energy savings, ultra-stable digital power, cool and quiet fans, and now networking and audio settings that are tailored to your apps. In short, 5-way ASUS optimization ensures that your PC is perfect for gaming, entertainment and productivity! -
OC design - ASUS PRO Clock technology
A dedicated base-clock generator designed for Intel processors allows overclocked base clock frequencies up to or beyond 425 MHz. This custom solution works in tandem with the ASUS TurboV processing unit to enhance voltage and base-clock overclocking control - providing an exciting way to boost performance to extreme heights. -
DDR4 overclocking strength in numbers
Third-generation ASUS T-Topology allows memory frequencies that are higher than ever - to 3866 MHz and beyond. Refined manufacturing ensures ultra-consistent quality and minimal crosstalk between custom trace paths, so you'll enjoy the thrill of overclocking DDR4 with time-aligned signaling for superior stability and compatibility. -
Native M.2/NVMe PCIe RAID support for lightning fast storage speed
Not satisfied with single-storage device read/write speeds? Then join the fast lane and build a RAID 0 array using two PCIe storage drives to enjoy data transfers at lightning speeds. -
Brighten up your build
A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for built-in RGB LEDs as well as LED strips connected to the onboard 4-pin RGB headers - all of which can be synced with an ever-growing portfolio of Aura Sync-capable ASUS hardware. -
SafeSlot - protect your graphics card investment
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process to integrate the slot with fortifying metal support for an inherently stronger design, the SafeSlot is then firmly anchored to the PCB through additional solder points.
Specifications
Summary
- Product Description
- ASUS PRIME Z270-A - motherboard - ATX - LGA1151 Socket - Z270
- Product Type
- Motherboard - ATX
- Chipset Type
- Intel Z270
- Processor Socket
- 1 x LGA1151 Socket
- Compatible Processors
- Pentium, Celeron, Core i5, Core i3, Core i7 (supports 6th and 7th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
- Max RAM Size
- 64 GB
- RAM Supported
- 4 DIMM slots - DDR4, non-ECC, unbuffered
- Storage Ports
- 6 x SATA-600 (RAID), 2 x M.2
- USB / FireWire Ports
- 1 x USB-C + 1 x USB 3.1 + 4 x USB 3.0 + (2 x USB 3.0 + 6 x USB 2.0 via headers)
- Max Allocated RAM Size
- 1 GB
- Audio
- HD Audio (8-channel)
- LAN
- Gigabit Ethernet
Detailed Specification
General
- Product Type
- Motherboard - ATX
- Chipset Type
- Intel Z270
- Processor Socket
- LGA1151 Socket
- Max Processors Qty
- 1
- Compatible Processors
- Pentium, Celeron, Core i5, Core i3, Core i7 (supports 6th and 7th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
Supported RAM
- Max Size
- 64 GB
- Technology
- DDR4
- Bus Clock
- 2133 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 2400 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.)
- Supported RAM Integrity Check
- Non-ECC
- Registered or Buffered
- Unbuffered
- Features
- Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Graphics
- Max Allocated RAM Size
- 1 GB
Audio
- Type
- HD Audio (8-channel)
- Audio Codec
- Realtek ALCS1220A
- Compliant Standards
- DTS Connect, High Definition Audio, DTS Headphone:X
LAN
- Network Controller
- Intel I219V
- Network Interfaces
- Gigabit Ethernet
Expansion / Connectivity
- Expansion Slots
- 1 x CPU , 4 x DIMM 288-pin , 2 x PCIe 3.0 x16 (dual x8 mode; single card: x16 mode) , 1 x PCIe 3.0 x16 (x4 mode) , 4 x PCIe 3.0 x1
- Storage Interfaces
- SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 , SATA-600 / PCIe 3.0 -connectors: 1 x M.2 , PCIe 3.0 -connectors: 1 x M.2
- RAID Features
- Intel Rapid Storage Technology
- Interfaces
- 1 x HDMI , 1 x LAN (Gigabit Ethernet) , 4 x USB 3.0 , 1 x audio line-in - mini-jack , 1 x audio line-out - mini-jack , 1 x microphone - mini-jack , 1 x PS/2 keyboard / mouse , 1 x USB 3.1 , 1 x DVI-D , 1 x DisplayPort , 1 x USB-C , 1 x TOSLINK , 1 x audio line-out (center/subwoofer) - mini-jack , 1 x audio line-out (rear) - mini-jack
- Internal Interfaces
- 6 x USB 2.0 - header , 2 x USB 3.0 - header , 1 x serial - header , 1 x Thunderbolt - header , 1 x audio - header
- Power Connectors
- 24-pin main power connector, 8-pin ATX12V connector
Features
- BIOS Type
- AMI
- BIOS Features
- WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, ASUS O.C. Profile, UEFI BIOS, ASUS EZ Flash 3, DMI 3.0 support, SMBIOS 3.0 support, ACPI 6.0 support
- Sleep / Wake Up
- Wake on LAN (WOL), wake on PME
- Hardware Features
- C.P.R. (CPU Parameter Recall), jack retasking, MemOK!, ASUS Q-Design, Q-DIMM, GPU Boost, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, ASUS Precision Tweaker 2, Intel Extreme Memory Profile (XMP) support, NVIDIA 2-way SLI Technology Support, Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Intel Smart Response Technology, Fanless Design Heatsink, AMD 3-way CrossFireX technology support, ASUS DIGI+ Power Control, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS O.C. Tuner, Turbo LAN, Dual Intelligent Processors 5, LANGuard, Memory O.C. Design, ASUS Overvoltage Protection, ASUS Crystal Sound 3, ASUS PRO Clock Technology, AURA RGB Lighting Control, ASUS Fan Xpert 4, Intel Optane Memory Ready, ASUS 5X Protection III, ASUS SafeSlot Core
Miscellaneous
- Included Accessories
- 1 x M.2 screw, I/O back cover
- Cables Included
- 3 x Serial ATA cable , 1 x SLI bridge
- Software Included
- Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, Cloud GO!
- Compliant Standards
- Plug and Play
- Width
- 30.5 cm
- Depth
- 24.4 cm
