Description
The technology that WOWs you with the ability to wake up your PC remotely over the internet. Turn your PC on/off only when you need to. Keep your PC healthy and save energy at the same time.
ASRock is determined to use high quality materials to build the best motherboards, that's why all the capacitors on this motherboard are built with 100% solid capacitors. These solid capacitors bring long lasting durability and ultra stable performance.
This motherboard supports the next-gen PCIe 3.0! Compared to PCIe 2.0, PCIe 3.0 offers up to 2X data transferring bandwidth for VGA cards, thus providing ultimate graphics performance.
Brilliantly designed for smart overclocking, ASRock X-Boost Technology is able to unleash the hidden power of your CPUs. Simply press "X" when turning on the PC, X-Boost will automatically overclock the relative components to get up to 15.77% performance boost! With the smart X-Boost, overclocking CPU can become a near one-button process.
Protects the motherboard from excessive surges from the power supply unit.
The onboard LAN chip is protected against sudden and violent voltage spikes caused by lightning.
In a world where time is money, why waste precious time everyday typing usernames to log in? Why should one even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in automatically!
Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.
Limit and control your children's time spent on the Internet. ASRock OMG (Online Management Guard) technology allows you to establish an Internet curfew or restrict Internet access at specified times. Administrators are able to schedule the starting and ending hours of Internet access granted to other users.
Dampness kills most electronics, so it's a better idea to keep your personal computer dry. Now users may prevent motherboard damages due to dampness by enabling Dehumidifier. When it is enabled, the computer will power on automatically to dehumidify the system after entering S4/S5 state.
-
Wake On WAN
The technology that WOWs you with the ability to wake up your PC remotely over the internet. Turn your PC on/off only when you need to. Keep your PC healthy and save energy at the same time. -
FM2/FM2+ APU support
This motherboard is compatible with both AMD FM2 and FM2+ APUs. -
All solid capacitor design
ASRock is determined to use high quality materials to build the best motherboards, that's why all the capacitors on this motherboard are built with 100% solid capacitors. These solid capacitors bring long lasting durability and ultra stable performance. -
Next-Gen PCIe 3.0
This motherboard supports the next-gen PCIe 3.0! Compared to PCIe 2.0, PCIe 3.0 offers up to 2X data transferring bandwidth for VGA cards, thus providing ultimate graphics performance. -
X-Boost
Brilliantly designed for smart overclocking, ASRock X-Boost Technology is able to unleash the hidden power of your CPUs. Simply press "X" when turning on the PC, X-Boost will automatically overclock the relative components to get up to 15.77% performance boost! With the smart X-Boost, overclocking CPU can become a near one-button process. -
Surge protection
Protects the motherboard from excessive surges from the power supply unit. -
Lightning protection
The onboard LAN chip is protected against sudden and violent voltage spikes caused by lightning. -
USB Key
In a world where time is money, why waste precious time everyday typing usernames to log in? Why should one even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in automatically! -
Restart to UEFI
Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility. -
ASRock OMG (Online Management Guard)
Limit and control your children's time spent on the Internet. ASRock OMG (Online Management Guard) technology allows you to establish an Internet curfew or restrict Internet access at specified times. Administrators are able to schedule the starting and ending hours of Internet access granted to other users. -
Dehumidifier
Dampness kills most electronics, so it's a better idea to keep your personal computer dry. Now users may prevent motherboard damages due to dampness by enabling Dehumidifier. When it is enabled, the computer will power on automatically to dehumidify the system after entering S4/S5 state.
Specifications
Summary
- Product Description

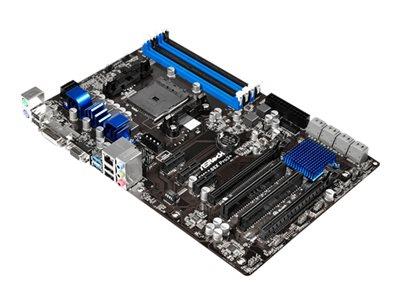

- ASRock FM2A88X Pro3+ - motherboard - ATX - Socket FM2 / FM2+ - AMD A88X
- Product Type
- Motherboard - ATX
- Chipset Type
- AMD A88X
- Processor Socket
- 1 x Socket FM2 / FM2+
- Compatible Processors
- (Maximum TDP 100 Watt (FM2 CPUs) / Maximum TDP 95 Watt (FM2+ CPUs))
- Max RAM Size
- 64 GB
- RAM Supported
- 4 DIMM slots - DDR3, non-ECC, unbuffered
- Storage Ports
- 8 x SATA-600 (RAID)
- USB / FireWire Ports
- 2 x USB 3.0 + 4 x USB 2.0 + (2 x USB 3.0 + 4 x USB 2.0 via headers)
- Max Allocated RAM Size
- 2 GB
- Audio
- HD Audio (6-channel)
- LAN
- Gigabit Ethernet
Detailed Specification
General
- Product Type
- Motherboard - ATX
- Chipset Type
- AMD A88X
- Processor Socket
- Socket FM2 / FM2+
- Max Processors Qty
- 1
- Compatible Processors
- (Maximum TDP 100 Watt (FM2 CPUs) / Maximum TDP 95 Watt (FM2+ CPUs))
Supported RAM
- Max Size
- 64 GB
- Technology
- DDR3
- Bus Clock
- 1600 MHz, 1333 MHz, 1066 MHz, 1866 MHz, 2133 MHz, 2400 MHz (O.C.)
- Supported RAM Integrity Check
- Non-ECC
- Registered or Buffered
- Unbuffered
- Features
- Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD Memory Profile (AMP)
Graphics
- Memory Allocation Technology
- Shared Video Memory (UMA)
- Max Allocated RAM Size
- 2 GB
Audio
- Type
- HD Audio (6-channel)
- Audio Codec
- Realtek ALC662
- Compliant Standards
- High Definition Audio
LAN
- Network Controller
- Realtek RTL8111GR
- Network Interfaces
- Gigabit Ethernet
Expansion / Connectivity
- Expansion Slots
- 1 x CPU , 4 x DIMM 240-pin , 1 x PCIe 3.0 x16 , 3 x PCIe 2.0 x1 , 1 x PCIe 2.0 x16 , 2 x PCI
- Storage Interfaces
- SATA-600 -connectors: 8 x 7pin Serial ATA - 8 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5
- Interfaces
- 2 x USB 3.0 , 4 x USB 2.0 , 1 x PS/2 keyboard , 1 x PS/2 mouse , 1 x LAN (Gigabit Ethernet) , 1 x DVI-D , 1 x VGA , 1 x audio line-in - mini-jack , 1 x microphone - mini-jack , 1 x audio line-out - mini-jack
- Internal Interfaces
- 2 x USB 3.0 - header , 4 x USB 2.0 - header , 1 x serial - header , 1 x audio - header
- Power Connectors
- 24-pin main power connector, 8-pin ATX12V connector
Features
- BIOS Type
- AMI
- BIOS Features
- JumperFree, SMBIOS 2.3.1. support, ACPI 1.1 support, UEFI BIOS
- Manual Settings
- Processor core voltage, memory voltage
- Hardware Monitoring
- CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage
- Sleep / Wake Up
- Wake on LAN (WOL)
- Hardware Features
- ASRock Instant Boot, ASRock Instant Flash, All-Solid Capacitor motherboard Design, Intel Extreme Memory Profile (XMP) support, AMD Radeon Dual Graphics, ASRock XFast LAN, ASRock XFast RAM, UEFI System Browser, ASRock Crashless BIOS, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, ASRock OMG (Online Management Guard), ASRock Internet Flash, 4+2 Phase Power Design, ASRock Dehumidifier Function, ESD Protection, Easy RAID Installer, AMD Steady Video 2.0, ASRock Interactive UEFI, AMD Memory Profile (AMP) support, ASRock X-Boost, ASRock Restart to UEFI, ASRock UEFI System Browser, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock UEFI Tech Service, ASRock Easy Driver Installer, ASRock USB Key, LAN Cable Detection, ASRock A-Tuning, ASRock Full Spike Protection, ASRock Cloud, ASRock APP Shop, High Density Glass Fabric PCB
Miscellaneous
- Included Accessories
- I/O back plate
- Cables Included
- 2 x Serial ATA cable
- Software Included
- Drivers & Utilities, Antivirus (Trial version), Start8 (30 days trial), Google Chrome Browser, Google ChromeToolbar, Orbweb.ME Professional
- Compliant Standards
- Plug and Play, WHQL, FCC, EuP Ready, ErP Ready
